- Direct Coil heating system
- Backlit display shows the current temperature
- Easily adjustable temperature via a knob on the front cover
- Ideal for many commercial applications including bathrooms, breark rooms, utility sinks, or a single low-flow shower
- Heats water on demand, for endless water as long as it is needed
- Electronic self-modulation technology ensures the least amount of electricity needed is used
- Sleek European design

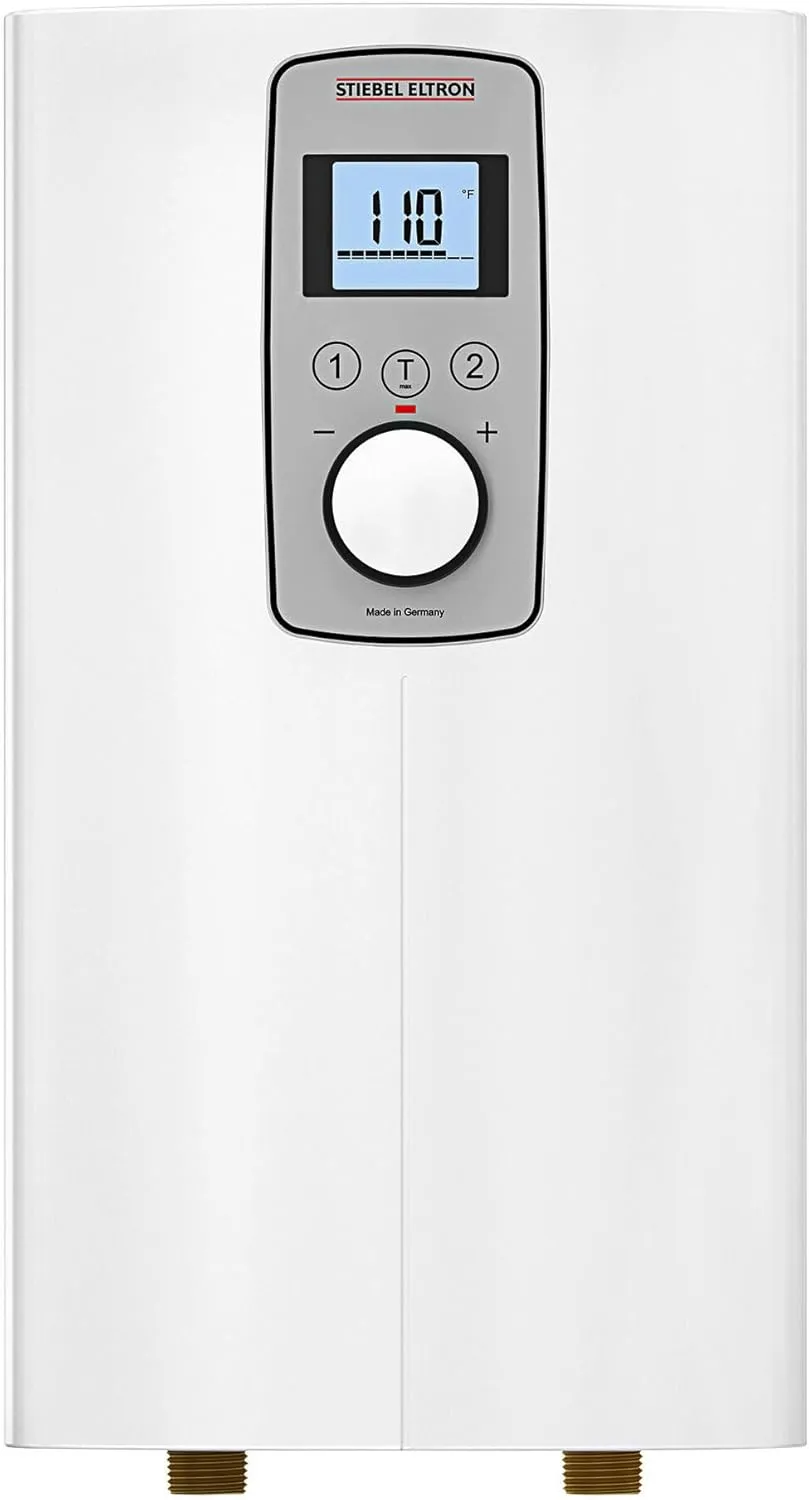

Stiebel Eltron 200057 Model DHC-E 3/3.5-1 Trend Electric Tankless Water Heater; 120V, 50/60 Hz; Direct Coil Heating System; Backlit Display; Easily Adjustable Temperature Control Via Knob
Key Features:
- Direct Coil heating system
- Backlit display shows current temperature
- Easily adjustable temperature (68-140 °F) via knob on front cover
- Ideal for many commercial applications including: bathrooms, breark rooms, utility sinks, or a single low-flow shower
- Heats water on demand, for endless a water as long as it is needed
- Electronic self-modulation technology ensures the least amount of electricity needed is used
- Sleek European design
Specifications:
- Phase (50/60 Hz): 1
- Voltage: 120V
- Wattage Jumper Position (1-low / 2-high): 3 kW / 3.5 kW
- Amperage, jumper position (1-low / 2-high): 25 A / 29.2 A
- Min. recommended circuit breaker size, jumper position (1-low / 2-high): 25 A / 30 A
- Min. recommended AWG wire size, jumper position (1-low / 2-high): 10/2 / 10/2
- Minimum water flow to activate unit: 0.264 gpm (1.0 l/min)
- Nominal water volume: 0.07 gal (0.277 l)
- Max. permissible inlet temperature: 149 F (65 C)
- Maximum permissible pressure: 145 psi (10 bar)
- Water connections: 1/2" NPT
- Dimensions (HxWxD): 14.17 x 7.95 x 4.29 inches
- Weight: 5.5 pounds
